High Silicon Cast Lron

High silicon cast iron anodes are widely used as a corrosion-resistant material due to their low cost and abundant raw materials. They have been the main anode material for cathodic protection since the 1950s. High silicon cast iron anodes have good corrosion resistance because the surface of the anode can form a stable silicon dioxide film, which is effective in both seawater and freshwater. We recommend using chromium or molybdenum chromide to prevent hypochlorite corrosion.

Inquiry Now

Add To Cart

PRODUCT DETAILS

SPECIFICATIONS

REVIEWS

INQUIRY NOW

RELATED PRODUCTS

Product Details

High silicon cast iron anodes are widely used for cathodic protection of surface structures, buried pipelines and cables, etc. It is a low-resistance, low-consumption, and low-energy-consumption anode. The silicon iron anodes we produce meet the ASTM5-18-86 (Grade 3) standard. This anode is cast using cold casting technology, which has better quality and performance than those cast using sand molds. The following specifications of anodes are available:

Specifications

Chemical composition of high silicon cast iron anode:
Serial Number
Type
Required Mass Fraction of Main Chemical Components/%
Impurity Mass Fraction/%
Si
Mn
C
Cr
Fe
P
S
1
ordinary
14.25-15.25
0.5-1.5
0.80-1.05

margin
≤ 0.25
≤ 0.1
2
Chromium
14.25-15.25
0.5-1.5
0.80-1.4
4-5
margin
≤ 0.25
≤ 0.1

Specifications:

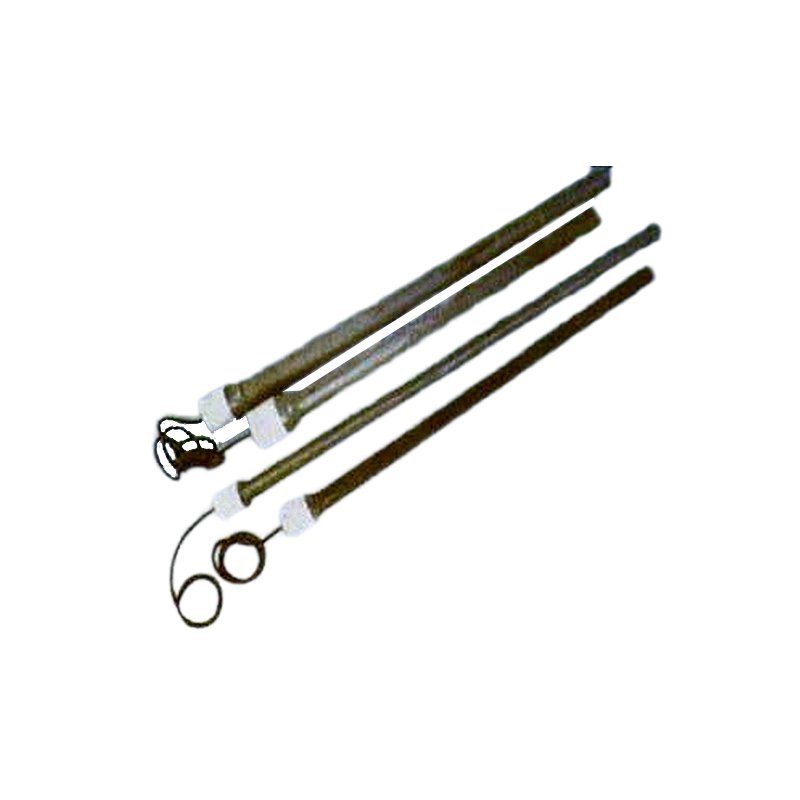

1. Rod shape:
Model
Size
Surface Area
Weight
Model
Size
Surface Area
Weight
AS-R01
25×300
0.023
1.5
AS-R07
50×1500
0.25
20.5
AS-R02
38×900
0.12
7.5
AS-R011
75×900
0.28
34
AS-R03
38×1200
0.16
10
AS-R012
75×1200
0.30
40
AS-R04
38×1500
0.20
13
AS-R013
75×1500
0.38
48
AS-R05
50×900
0.16
13.5
AS-R014
100×1200
0.38
66
AS-R06
50×1200
0.20
16.5
AS-R015
100×1500
0.47
83

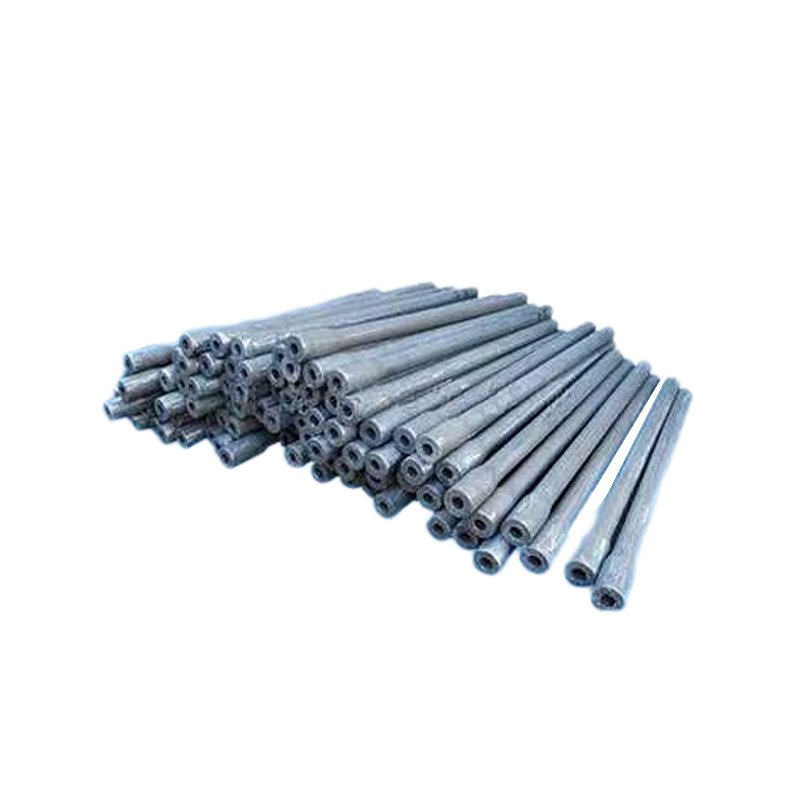

2. Tubular:
Model
Outside Diameter
Wall Thickness
Surface Area
Length
AS-T01
75 mm
10 mm
0.35 m2
1500mm
AS-T02
100mm
10 mm
0.47 m2
1500mm

Compared to solid rod anodes, tubular anodes have the following advantages:
1. Reduce the electrolysis of the anode.
2. Increase the surface area to weight ratio, thereby reducing the current density, which is conducive to the diffusion of the generated gas. This is important for deep installation.
3. The cable connection position is in the center of the tube to increase the current dispersion and release the end charge
