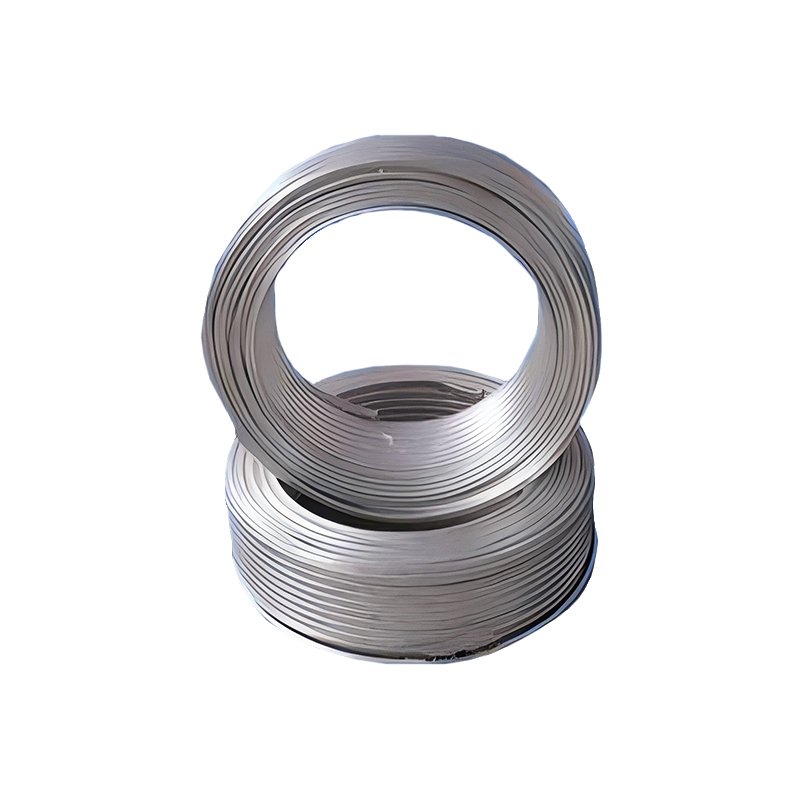

Zinc-band anodes come in continuous ribbon form with a steel core and can be used in soil, Marine and fresh water. Zinc-band anodes offer a very simple, cost-effective, maintenance-free corrosion control method. Zinc-band anodes are not recommended in pH values greater than 8 or in temperatures greater than 120 degrees Fahrenheit, in which case a reversal occurs and zinc becomes a cathode instead of an anode.
Electrochemical properties of strip zinc alloy sacrificial anode:
Model | Open Circuit Potential /V | Theoretical Capacity /(A · h/kg) | Actual Capacity /(A · h/kg) | Current Efficiency /% | |
Relative CSE | Relative SCE | ||||
Zinc Alloy | ≤ -1.05 | ≤ -0.98 | 820 | ≥ 780 | ≥ 95 |
High purity zinc | ≤ -1.10 | ≤ -1.03 | 820 | ≥ 740 | ≥ 90 |
Note: The experimental medium is artificial seawater | |||||
Specifications and dimensions of strip zinc alloy sacrificial anode:
Anode Specifications | ZR-1 | ZR-2 | ZR-3 | ZR-4 |
Section Size D1*D2 /mm | 25.40 × 31.75 | 15.88 × 22.22 | 12.70 × 14.28 | 8.73 × 10.32 |
Anode Strip Wire Mass /(kg/m) | 3.57 | 1.785 | 0.893 | 0.372 |
Steel Core Diameter φ /mm | 4.7 | 3.43 | 3.30 | 2.92 |
Standard Roll Length /m | 30.5 | 61 | 152 | 305 |
Standard Roll Inner Diameter /m | 900 | 600 | 300 | 300 |
Center Deviation of Steel Core /mm | -2 ～ +2 | |||
The Z in the anode specification stands for zinc, R stands for strip, and the number behind it is the serial number | ||||
