Product Details

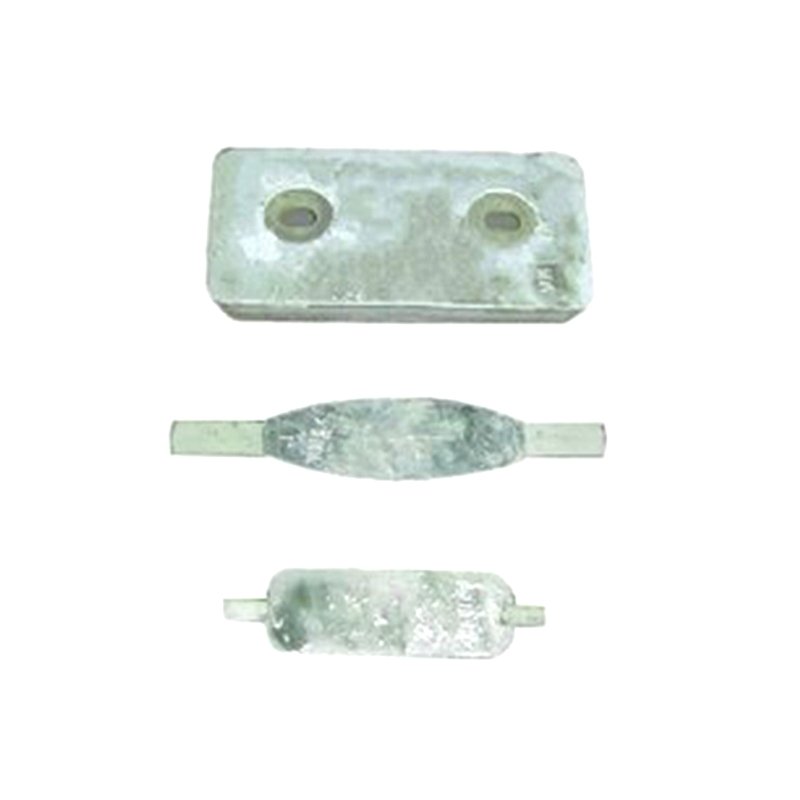

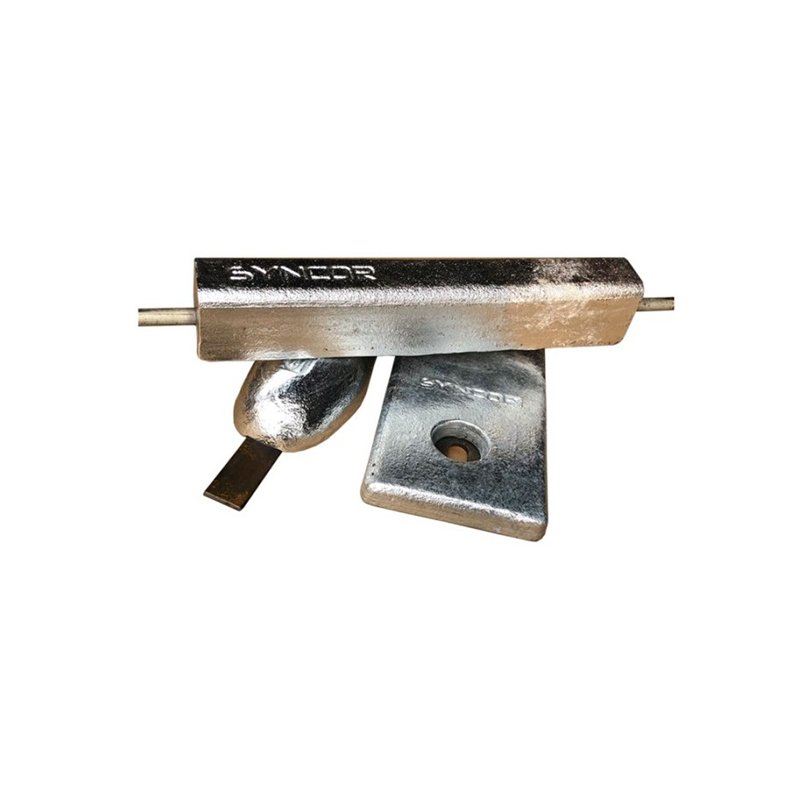

Zinc based anodes are widely used for shipping applications, they are also used for offshore structures but their higher density can lead to weight limitations. Zinc anodes do not require a chloride environment to operate and can be used in brackish and fresh water applications and onshore with resistivity up to 30 Ohm*m.
Our Zinc anodes are subject of National and/or International Patents. The different compositions are intended to optimize specific performance properties.
The electrochemical properties for zinc based alloys will vary depending on the specific alloy composition and the operating environment.
Generally, zinc alloys are only applicable at temperatures up to 50 °C. Above this temperature, zinc alloys can suffer from inter-granular corrosion, especially when buried in saline mud. Syncor develop a Zinc alloy that can operate successfully at higher temperatures up to 85 °C. Anodes offer as pre-packed for onshore Cathodic protection or AC Mitigation.

Specifications

Flush Mounted
Weld on type
Type
LXWXH (mm)
NW (kg)

GW (kg)
10Z
180X60X30

1

1.1
30Z
230X78X37

2.2

2.6
50Z
290X100X50

4.8

5.3
70Z
255X92X45

6

6.5
80Z
275X148X32

7.3

8
110Z
285X145X71

10.1

10.6
130Z
450X100X62

11.8

13
160Z
590X105X48

14.3

16
220Z
550X128X50

20.5

22
300Z
630X130X55

24.3

26
W2Z
150X70X20

1.4

1.6
W3Z
200X100X20

2.6

2.9
W4Z
200X100X30

3.9

4.2
W5Z
200X100X40

5.2

5.5
W6Z
300X150X20

5.8

6.4
W8Z
300X150X25

7.3

7.9
W9Z
300X150X30

8.8

9.4
W10Z
300X150X40

11.4

12
W11Z
300X150X50

14.6

15.2
W12Z
300X150X60

17.5

18.1
W13Z
300X150X70

20.5

21.1
W14Z
300X150X75

21.9

22.5
W15Z
300X200X40

15.6

16.2
W16Z
300X200X45

17.5

18.1
W17Z
300X200X50

19.5

20.1
W18Z
300X200X55

21.4

22
W19Z
300X200X60

23.4

24
W20Z
300X200X65

25.3

25.9
Bolt on type
Type
LXWXH (mm)

P (mm)
NW (kg)
GW (kg)
B2Z
150X70X20

80
1.4
1.5
B3Z
200X100X20

110
2.4
2.5
B4Z
200X100X30

110
3.4
3.5
B5Z
200X100X40

110
4.1
4.2
B6Z
300X150X20

160
5.5
5.9
B8Z
300X150X25

160
7.1
7.5
B9Z
300X150X30

160
8.8
9
B10Z
300X150X40

160
11.1
11.4
B11Z
300X150X50

160
13.5
13.8
B12Z
300X150X60

160
15.9
16.2
B13Z
300X150X70

160
18.3
18.6
B14Z
300X150X75

160
20
20.3
B15Z
300X200X40

160
14.8
15,1
B16Z
300X200X45

160
18.3
18.6
B17Z
300X200X50

160
20.3
20.6
B18Z
300X200X55

160
22.1
22.4
B19Z
300X200X60

160
24.3
24.6
B20Z
300X200X65

160
26.4
26.7
RB14
360X180X45

180
14.4
14.7
RB20
540X130X55

340
19.7
20.1
RB25
540X140X65

340
24
24.4
RB30
460X200X65

260
30.4
30.8
RB40
540X200X65

340
39.6
40
RB41
930X170X40

600
40.6
41.6
RB47
1100X160X40

800
45.5
46.5
RB60
1000X180X55

600
60.4
61.4
