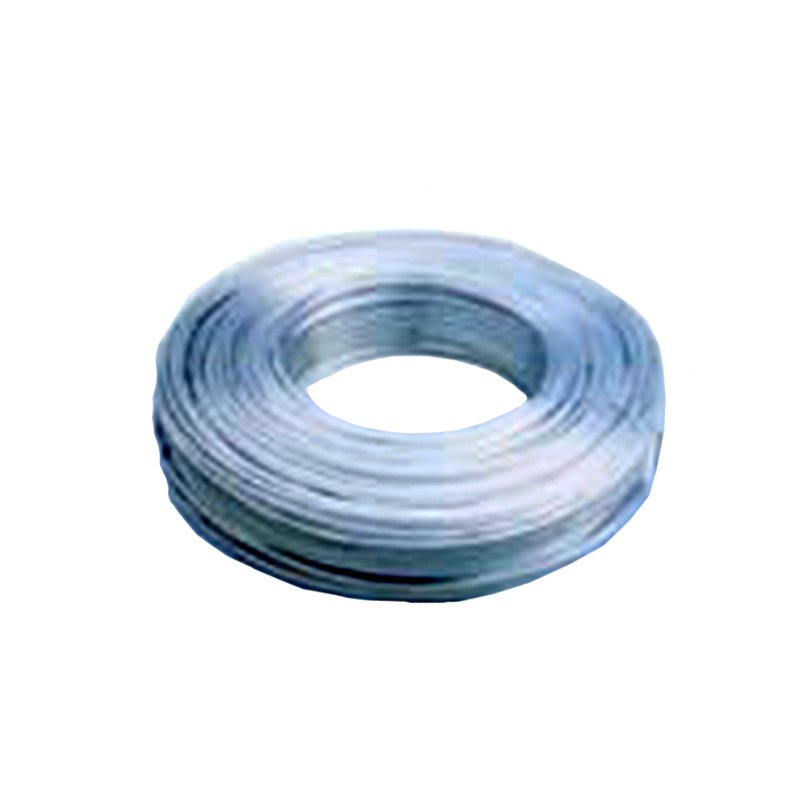

Magnesium strip anodes are used in soil environments and high resistivity water environments. Magnesium strip anodes have a higher area to weight ratio, can provide higher current output, and magnesium strip anodes are flexible and variable, which is more convenient to install during construction.
Magnesium strip anodes are used in soil environments and high resistivity water environments. Magnesium strip anodes have a higher area to weight ratio, can provide higher current output, and magnesium strip anodes are flexible and variable, which is more convenient to install during construction.
Chemical Composition :
Standard | Al | Mn | Cu | Si | Ni | Fe | Impurity ( Single ) | Impurities (total) | Mg |
ASTM B843 | ≤0.01% | 0.50-1.30% | ≤0.005% | ≤0.05% | ≤0.001% | ≤0.01% | ≤0.05% | ≤0.30% | margin |
Electrochemical performance:
Open Circuit Potential (-V) | Closed Circuit Potential (-V) | Current Capacity (Ah/kg) | Current Efficiency |
1.70-1.75 | 1.58-1.62 | 1100 | 50% |
Dimensions & Weight:
Section (mm) | 9.50 x 19.05 |
Core Diameter(mm) | 3.0 – 3.4 |
Core Eccentricity (mm) | <1.60 |
Weight (kg/m) | 0.36 |
Standard Length/Roll (mm) | 305 |
Core Weight (kg) | 110 |
