Flexible anode is a new material that has been developed recently, with its main application being cathodic protection of storage tanks and buried pipelines. It has a very low consumption rate and high current capacity.

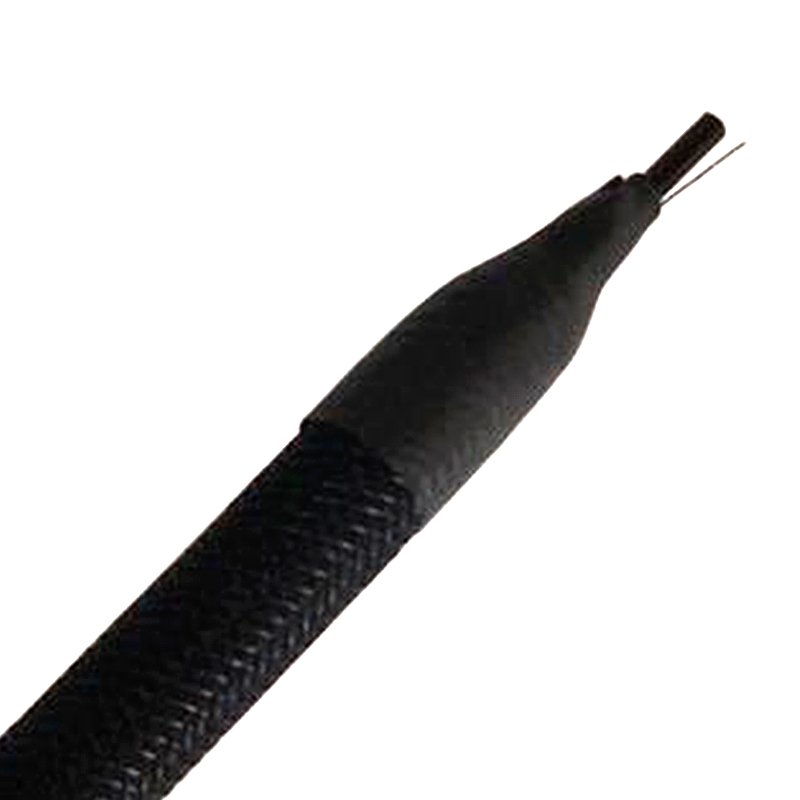

The basic structure of a flexible anode is: an internal anode core material + carbon powder filler + an outer layer of fabric + an outer mechanical woven protective mesh. Because it can be flexibly bent, it resembles a thicker cable and is known as a flexible anode or cable anode.
Applications of Flexible Anodes:
1. Underground pipelines;
2. The bottom plate of steel storage tanks on the ground;
The flexible anode has the following characteristics:
◇ Excellent conductivity
◇ Resistant to acidic environments
◇ Chemical Stability
◇ Lower consumption rate compared to other countries.
◇ Suitable for chlorine and oxygen release electrolytes
◇ Life expectancy exceeds 50 years.
◆ Easy to use
Product Model | MMO coating φ1.5mm titanium wire anode | MMO coating φ3.0mm titanium wire anode |
Outer diameter of combined flexible anode | 38 | 38 |
MMO/ Ti anode core diameter | 1.5mm | 3.0mm |
Output current (max) | 300~1000mAm | 300~1000mAm |
Design life | ≥40 years, can be designed according to user requirements | ≥40 years, can be designed according to user requirements |
cable | 1×10mm 2 XLPE/PVC | 1×10mm 2 XLPE/PVC |
Filling toner carbon content | ≥99.5% | ≥99.5% |
MMO/ Ti wire and cable | ≤0.0009Ω | ≤0.0009Ω |
Anode weight | 1.5Kg/m | 1.5Kg/m |

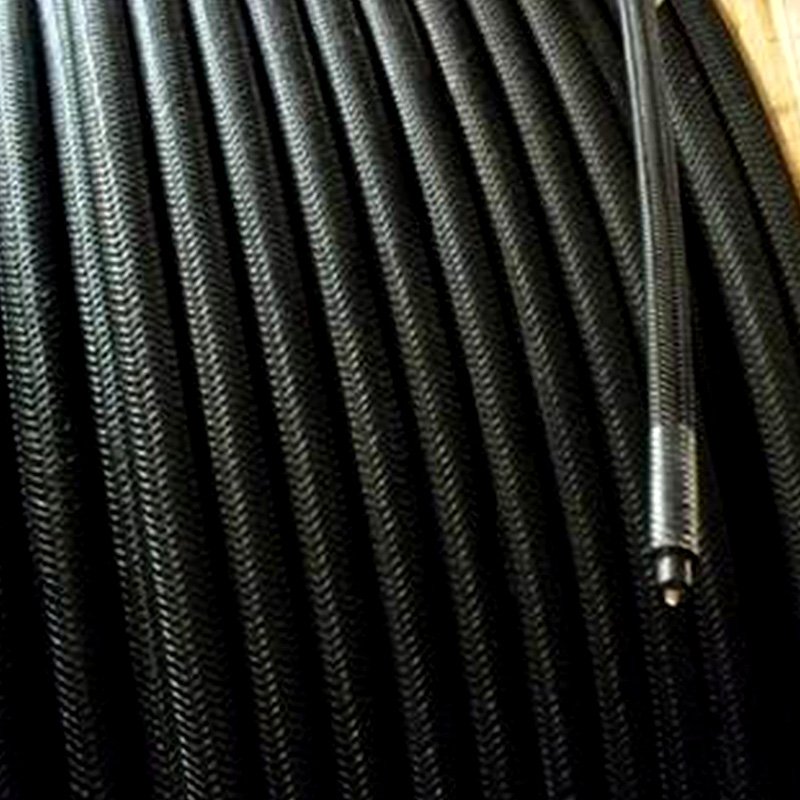

Length of anode per roll | 500m, 1000m | 500m, 1000m |
